Long Description

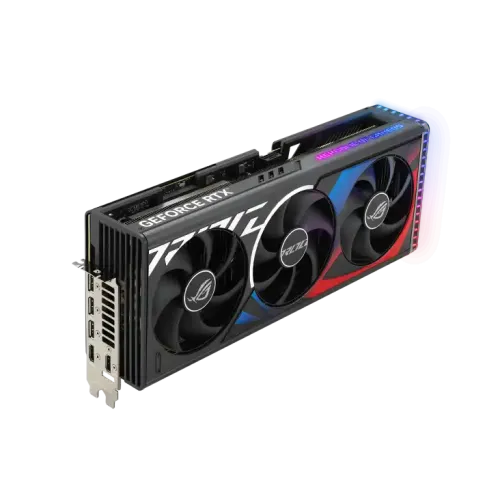

The ASUS ROG Strix GeForce RTX 4080 SUPER 16GB GDDR6X OC Edition stands as an uncompromising masterpiece designed to extract every single ounce of processing headroom from the GPU core. Built on the 5nm NVIDIA Ada Lovelace framework, this card features a massive computational core expansion over standard graphics layouts, deploying 10,240 CUDA cores alongside 4th Generation Tensor Cores to scale framerates up to 4x via AI-driven DLSS 3 Frame Generation compared to traditional rendering. Backed by 3rd Generation RT Cores, it delivers stunningly realistic, real-time ray-traced reflections and global lighting. The expansive 16GB GDDR6X frame buffer running over a wide 256-bit bus completely eliminates data transmission bottlenecks, allowing modern digital creators, 3D animators, and data science engineers to fluidly execute massive local generative AI models, dense viewport rendering in Blender, and multi-layered 4K/8K video timelines.
ROG - ASUS+ 2
What elevates this ROG Strix flagship past standard cards is its chart-topping, institutional thermal layout. The card introduces a massive 35.7 cm structural chassis containing an enormous 3.5-slot heatsink matrix. At its baseline sits a patented custom vapor chamber featuring precision-milled pathways that allow heatpipes to sink in cleanly without being pressed flat, reducing core temperatures by up to 5°C under heavy thermal loads. Airflow is forcefully continuously driven by three scaled-up Axial-tech fans spinning on dual ball bearings to push 23% more air volume through the cooling array. The two outer fans feature reverse-rotational engineering to eliminate internal air turbulence, while intelligent 0dB ambient technology drops fan speeds to a complete stop whenever the GPU core falls below 50°C for absolute acoustic silence. Complete with dual PWM FanConnect II headers to synchronize chassis airflow directly to the GPU, a digital power delivery network featuring ultra-reliable 15K metallic capacitors, and an industrial-grade diecast metal exoskeleton frame, it remains the ultimate centerpiece for tier-one custom desktop environments.
ROG - ASUS
Technical Specifications Table
| Category | Feature | Specification Details |
|---|---|---|
| GPU Engine Specs | Graphics Processor | NVIDIA GeForce RTX 4080 SUPER (AD103-400) |
| GPU Engine Specs | CUDA Cores | 10,240 Units |
| GPU Engine Specs | Engine Clock (Default Mode) | Boost Clock: 2640 MHz |
| GPU Engine Specs | Engine Clock (OC Mode) | Boost Clock: 2670 MHz |
| GPU Engine Specs | AI Computing Performance | 865 AI TOPS |
| Memory Specs | Video Memory Configuration | 16GB GDDR6X |
| Memory Specs | Memory Speed | 23 Gbps (Effective) |
| Memory Specs | Memory Interface Width | 256-bit |
| Memory Specs | Memory Bandwidth | 736 GB/s |
| Display Support | Digital Max Resolution | 7680×4320 (8K Ultra HD Support) |
| Display Support | Maximum Display Connections | Quad Display Support (Up to 4 concurrent monitors) |
| Display Support | HDCP Version Support | Yes (Version 2.3) |
| Connectivity | HDMI Interface | 2x Native HDMI 2.1a |
| Connectivity | DisplayPort Interface | 3x Native DisplayPort 1.4a |
| Power Specs | Estimated Maximum Power (TDP) | ~320W |
| Power Specs | Recommended System PSU | 850W |
| Power Specs | External Power Connectors | 1x 16-pin PCIe (12VHPWR) Cable |
| API Support | DirectX Support | DirectX 12 Ultimate |
| API Support | OpenGL Support | OpenGL 4.6 |
| Physical Specs | Dimensions (L x W x H) | 357.6 x 149.3 x 70.1 mm (14.07 x 5.87 x 2.75 inches) |
| Physical Specs | Form Factor Slot Width | 3.5-Slot Profile (Requires massive chassis clearance) |
| Physical Specs | Cooling Engineering | Triple Axial-tech Fans, Patented Vapor Chamber, Reverse Rotation |
| Extra Features | Structural & Customization | Vented Diecast Exoskeleton, 2x FanConnect II Headers, Aura Sync ARGB |
| Warranty | Product Warranty | 3 Years Limited Replacement Warranty |
