| Basic Information | |
|---|---|
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 220mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 96GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| D-Sub (s) | 1x D-Sub |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years |

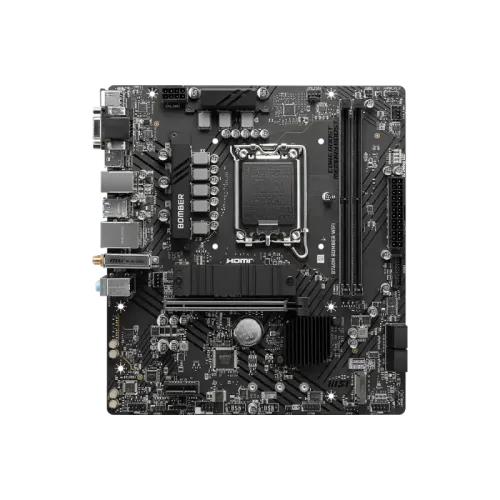

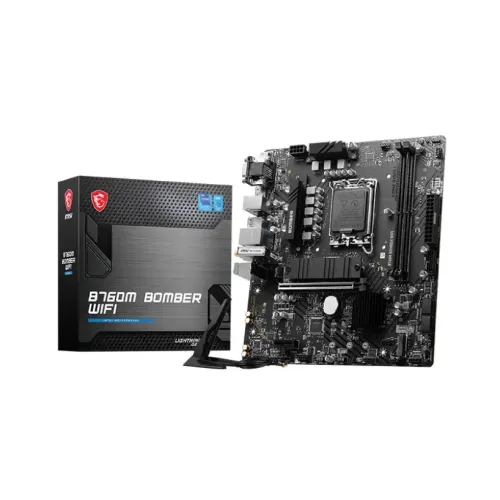

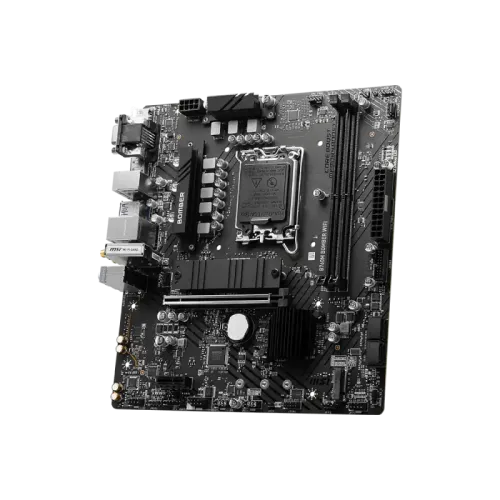

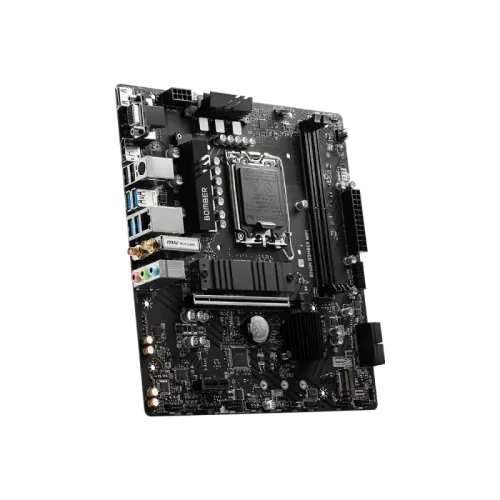

MSI B760M BOMBER WIFI mATX Motherboard
Price:
18,500৳
Status: Out of Stock
Product
Code: #850
Category:
Motherboard
Tags:
MotherBoard
The MSI B760M BOMBER WIFI mATX Motherboard is a powerful Intel LGA 1700 motherboard designed for 14th, 13th, and 12th Gen Intel processors. It supports high-speed DDR5 memory up to 6400+MHz (OC), PCIe 4.0, Lightning Gen4 M.2, Wi-Fi 6E, and 2.5G LAN for fast connectivity and reliable performance. With its 12+1 Duet Rail Power System, advanced cooling design, Audio Boost, and durable 6-layer PCB, this motherboard is an excellent choice for gaming, content creation, and everyday high-performance computing.
18,500৳
Cash / Online Price
Online / Cash Payment
1,542৳/month
Regular Price: 18,500৳
0% EMI up to 12 Months
This product is currently out of stock.
Request for Quotation
Specification
Description
MSI B760M BOMBER WIFI mATX Motherboard
The MSI B760M BOMBER WIFI mATX Motherboard is built to deliver exceptional performance, stability, and connectivity for gamers, professionals, and PC enthusiasts. Powered by the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors using the LGA 1700 socket, providing a reliable platform for modern desktop builds. The motherboard features dual-channel DDR5 memory support with speeds of up to 6400+MHz (OC), ensuring faster data processing, smoother multitasking, and improved overall system responsiveness.
Designed with a 12+1 Duet Rail Power System, P-PAK power stages, and dual 8-pin + 4-pin CPU power connectors, the MSI B760M BOMBER WIFI delivers stable power even under heavy workloads. MSI's Core Boost and Memory Boost technologies further enhance CPU and memory performance, while the extended heatsink, premium MOSFET thermal pads, and additional choke thermal pads provide efficient cooling for long-term stability during gaming or demanding applications.
For storage and expansion, the motherboard includes a PCIe 4.0 x16 slot for high-performance graphics cards and a Lightning Gen4 x4 M.2 slot with M.2 Shield Frozr, allowing ultra-fast NVMe SSD performance while maintaining optimal temperatures. High-speed USB 3.2 Gen 2 10Gbps connectivity ensures rapid data transfer for external devices and peripherals.
Networking is another standout feature of the MSI B760M BOMBER WIFI, offering 2.5 Gigabit LAN alongside Wi-Fi 6E, delivering faster wireless speeds, lower latency, and more reliable connections for online gaming, streaming, and professional workloads. The motherboard is built using a premium 6-layer PCB with 2oz thickened copper, improving signal quality, durability, and power efficiency.
To complete the experience, MSI's Audio Boost technology provides high-quality, immersive sound for gaming, entertainment, and multimedia applications. Combining advanced performance, robust power delivery, modern connectivity, and efficient cooling, the MSI B760M BOMBER WIFI mATX Motherboard is an excellent choice for users looking to build a future-ready gaming or productivity PC.
What is the price of MSI B760M BOMBER WIFI mATX Motherboard in Bangladesh?
The latest price of MSI B760M BOMBER WIFI mATX Motherboard in Bangladesh is 18,500৳. You can buy the MSI B760M BOMBER WIFI mATX Motherboard at best price from our website or visit any of our showrooms.
