| Basic Information | |
|---|---|
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Chipset | INTEL B860 |
| Form Factor | ATX (243.84mmx304.8mm) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| M.2 Socket | 3x M.2 |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
| Maximum Memory | Maximum Memory Capacity 256GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| LAN Port (s) | Realtek 8126 5Gbps LAN |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Warranty Information | |
| Manufacturing Warranty | 3 Year warranty |

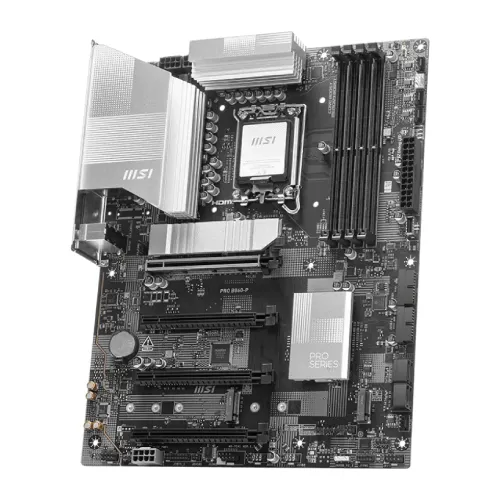

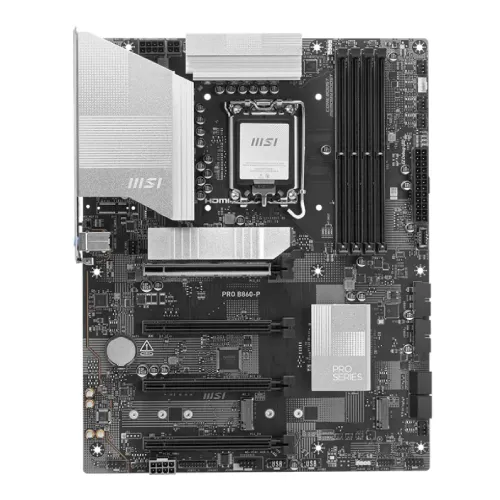

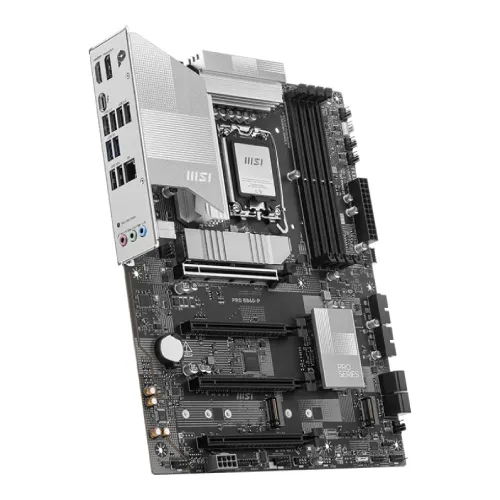

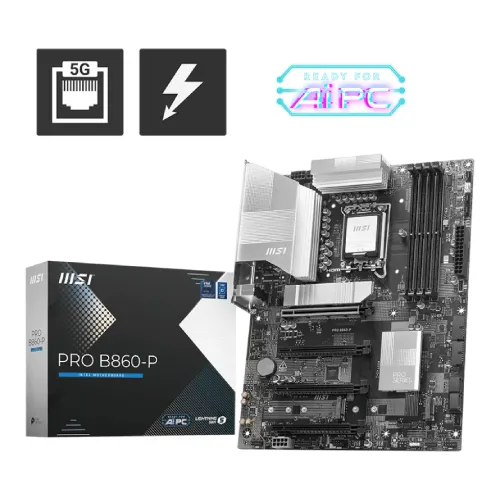

MSI PRO B860-P LGA 1851 ATX Motherboard
Price:
25,400৳
Status: In Stock
Product
Code: #853
Category:
Motherboard
Tags:
MotherBoard
The MSI B860 ATX DDR5 Motherboard is a next-generation Intel motherboard designed for Intel Core Ultra (Series 2) processors. Featuring the Intel B860 chipset, it supports up to 256GB DDR5 memory at speeds of 8800+ MT/s (OC), PCIe 5.0 graphics, three M.2 slots, 5GbE LAN, Thunderbolt 4, and advanced USB connectivity. With premium power delivery, RAID support, and high-speed expansion, it is an excellent choice for gaming, AI computing, and professional workloads.
25,400৳
Cash / Online Price
Online / Cash Payment
2,117৳/month
Regular Price: 25,400৳
0% EMI up to 12 Months
Specification
Description
MSI PRO B860-P LGA 1851 ATX Motherboard
The MSI B860 ATX DDR5 Motherboard is a premium desktop motherboard built to unlock the full potential of Intel Core Ultra (Series 2) processors. Powered by the latest Intel B860 chipset and featuring a full-size ATX form factor, it provides outstanding performance, next-generation connectivity, and extensive expansion capabilities for gamers, content creators, AI developers, and professional users.
The motherboard supports up to 256GB of dual-channel DDR5 memory across four DIMM slots, with overclocking speeds reaching an impressive 8800+ MT/s. It is fully compatible with Intel XMP memory profiles, enabling users to maximize memory performance for faster multitasking, gaming, video editing, and demanding productivity applications.
For graphics and expansion, the MSI B860 features a PCIe 5.0 x16 slot for the latest high-performance graphics cards, along with additional PCIe 4.0 expansion slots for capture cards, storage controllers, and other peripherals. Storage performance is equally impressive with three M.2 slots, including a PCIe 5.0 x4 M.2 slot for ultra-fast next-generation NVMe SSDs, two PCIe 4.0 M.2 slots, and four SATA 6Gb/s ports. The motherboard also supports RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and NVMe storage devices, offering flexible storage configurations.
Networking is powered by a Realtek 5Gb Ethernet controller, delivering ultra-fast wired connectivity for gaming, large file transfers, and professional workloads. Display options include HDMI 2.1, DisplayPort 1.4, and a Thunderbolt 4 USB Type-C port supporting DisplayPort 2.1, allowing resolutions up to 4K at 120Hz or 8K at 60Hz with compatible Intel processors.
The motherboard offers a comprehensive range of USB connectivity, including USB 10Gbps Type-C, multiple USB 10Gbps Type-A, USB 5Gbps, and USB 2.0 ports to accommodate modern peripherals and external storage devices. Internal connectors include a Thunderbolt 5 expansion header, TPM 2.0 support, multiple RGB and ARGB headers, dedicated CPU and system fan headers, PCIe power connector, and front-panel USB Type-C for enhanced system customization and future expansion.
Premium onboard audio is provided by the Realtek ALC897 7.1-Channel High Definition Audio codec, delivering clear and immersive sound for gaming, entertainment, and multimedia applications. The motherboard is also equipped with comprehensive cooling support, advanced power delivery, and durable components to ensure reliable performance during intensive workloads.
Combining PCIe 5.0, ultra-fast DDR5 memory, Thunderbolt 4, 5Gb Ethernet, extensive storage options, and future-ready connectivity, the MSI B860 ATX DDR5 Motherboard is an ideal platform for building a powerful next-generation gaming PC, AI workstation, or high-performance desktop system.
What is the price of MSI PRO B860-P LGA 1851 ATX Motherboard in Bangladesh?
The latest price of MSI PRO B860-P LGA 1851 ATX Motherboard in Bangladesh is 25,400৳. You can buy the MSI PRO B860-P LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
