| Basic Information | |
|---|---|
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
| Chipset | INTEL B860 |
| Form Factor | ATX (243.84mmx304.8mm) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| M.2 Socket | 3x M.2 |
| Memory | |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
| Maximum Memory | Maximum Memory Capacity 256GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
| Connector & Ports | |
| HDMI | 1x HDMI 2.1 |
| Display Port (s) | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
| LAN Port (s) | Realtek 8126 5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Warranty Information | |
| Manufacturing Warranty | 3 Year warranty |

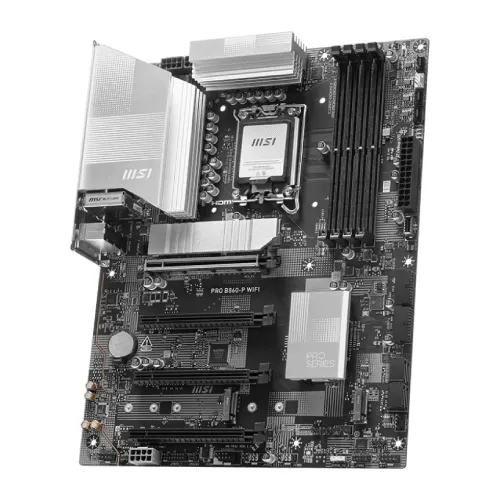

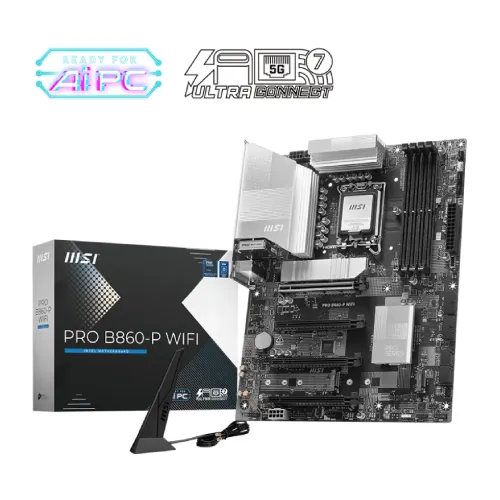

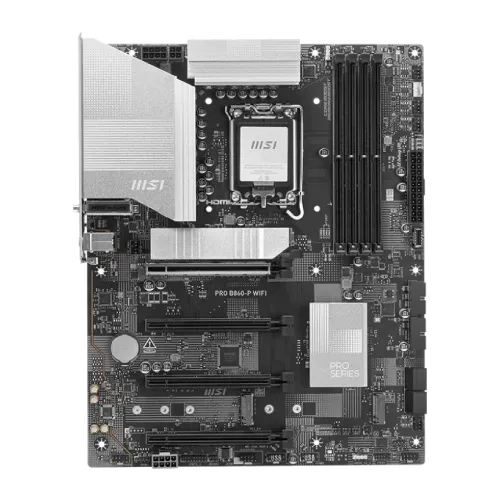

MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
Price:
27,800৳
Status: Out of Stock
Product
Code: #854
Category:
Motherboard
Tags:
MotherBoard
The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is a premium motherboard built for Intel Core Ultra (Series 2) processors. Powered by the Intel B860 chipset, it supports DDR5 memory up to 8600+ MT/s (OC), PCIe 5.0, Thunderbolt 4, 5GbE LAN, Wi-Fi, and advanced cooling technologies. Featuring a robust 12+1+1+1 digital power design, MSI AI Engine, Mystic Light, and EZ DIY features, it is an ideal choice for gaming, content creation, and professional desktop systems.
27,800৳
Cash / Online Price
Online / Cash Payment
2,317৳/month
Regular Price: 27,800৳
0% EMI up to 12 Months
This product is currently out of stock.
Request for Quotation
Specification
Description
MSI PRO B860-P WIFI LGA 1851 ATX Motherboard
The MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is a high-performance desktop motherboard engineered to meet the demands of gamers, content creators, AI developers, and professional users. Based on the latest Intel B860 chipset, it supports Intel Core Ultra (Series 2) processors on the LGA 1851 socket, delivering outstanding computing power and efficiency for next-generation desktop platforms.
Designed in the ATX form factor, the motherboard offers exceptional expandability and supports dual-channel DDR5 memory with overclocking speeds of up to 8600+ MT/s, providing outstanding bandwidth for multitasking, gaming, video editing, AI applications, and intensive workloads. Its 12+1+1+1 digital power delivery system ensures stable and efficient power distribution, allowing high-end Intel processors to perform at their full potential while maintaining excellent system stability.
For next-generation expansion, the motherboard features PCIe 5.0 support for the latest graphics cards and ultra-fast storage devices. Integrated Thunderbolt 4 connectivity enables blazing-fast data transfer, high-resolution display output, and support for advanced peripherals through a single USB Type-C connection. High-speed networking is powered by 5 Gigabit Ethernet and integrated Wi-Fi, providing fast, stable, and low-latency internet connectivity for gaming, streaming, cloud computing, and professional applications.
The MSI PRO B860-P WIFI is equipped with advanced thermal solutions, including Extended Heatsinks and M.2 Shield Frozr II, ensuring efficient heat dissipation for the VRM and high-speed NVMe SSDs during demanding workloads. MSI's intelligent features such as the AI Engine automatically optimize system performance based on user workloads, while Mystic Light allows complete RGB lighting customization for a personalized system appearance.
Building and upgrading the system is easier with MSI's EZ DIY design, including the EZ M.2 Shield Frozr II, which simplifies SSD installation and maintenance. Combined with premium build quality, future-ready connectivity, advanced cooling, and intelligent performance optimization, the MSI PRO B860-P WIFI LGA 1851 ATX Motherboard is an excellent platform for users seeking a reliable, high-performance motherboard capable of handling modern gaming, professional productivity, and AI computing tasks.
What is the price of MSI PRO B860-P WIFI LGA 1851 ATX Motherboard in Bangladesh?
The latest price of MSI PRO B860-P WIFI LGA 1851 ATX Motherboard in Bangladesh is 27,800৳. You can buy the MSI PRO B860-P WIFI LGA 1851 ATX Motherboard at best price from our website or visit any of our showrooms.
